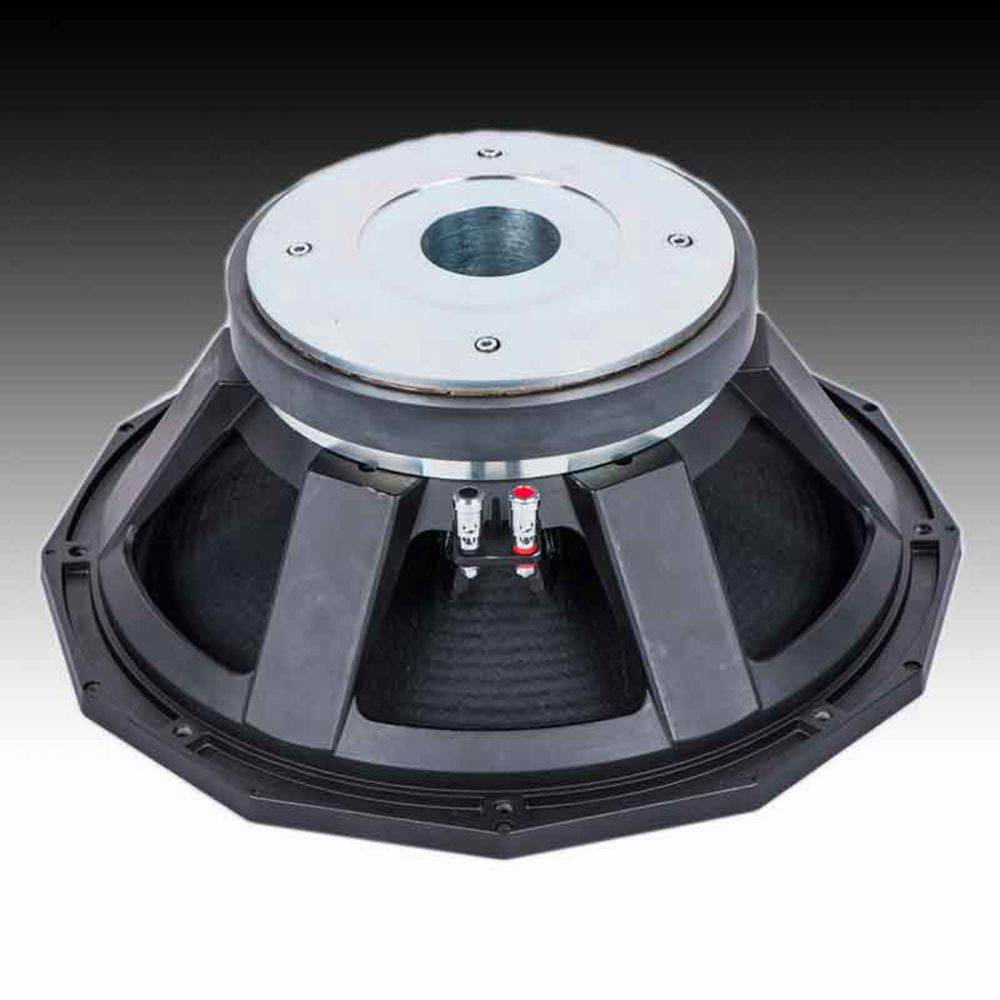

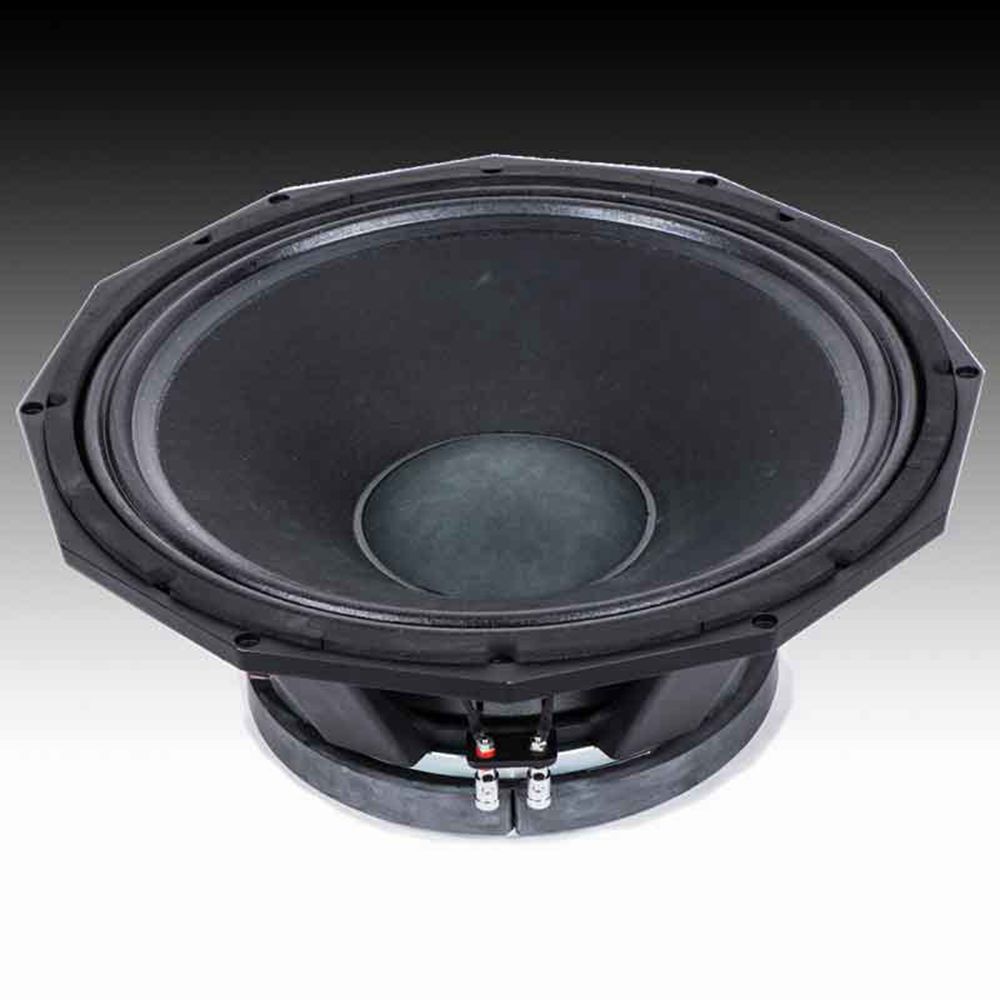

Your Location: Home > Pro Audio > PA Woofer > Regular Series > PD1560/PD1860Products
General  Specification PD1560 PD1860
Norminal Diameter : 394mm/15inch 465mm/18inch
Power Rating : 600W 1500W
Norminal Impedance : 8Ohm 8Ohm
Sensitivity : 98dB 97dB
Frequency Range : 40Hz-3.5kHz 35Hz-2kHz
Chassis Type: Aluminium Aluminium
Magnet Type: Ferrite Magnet Ferrite Magnet
Magnet Weight : 125OZ  220*110*25 200OZ 280*140*25
Voice Coil ; 4"/99.2mm 5"/127mm
Coil Material SV,Inside-out SV,Inside-out
Voicecoil Winding Width: 23mm 25mm
Cone/Surround Material : Paper/Cloth Paper/Cloth
Suspension : Double Spider Double Spider
X-mas: ±6.0mm ±6.0mm
N/G  Weight 13/14kg 16/18kg
Dimension WxDxH 44x44x25cm 51x51x27cm

Pervious: 15HP1030/18HP1030       Next: LF15X400-B / LF18X400-B
