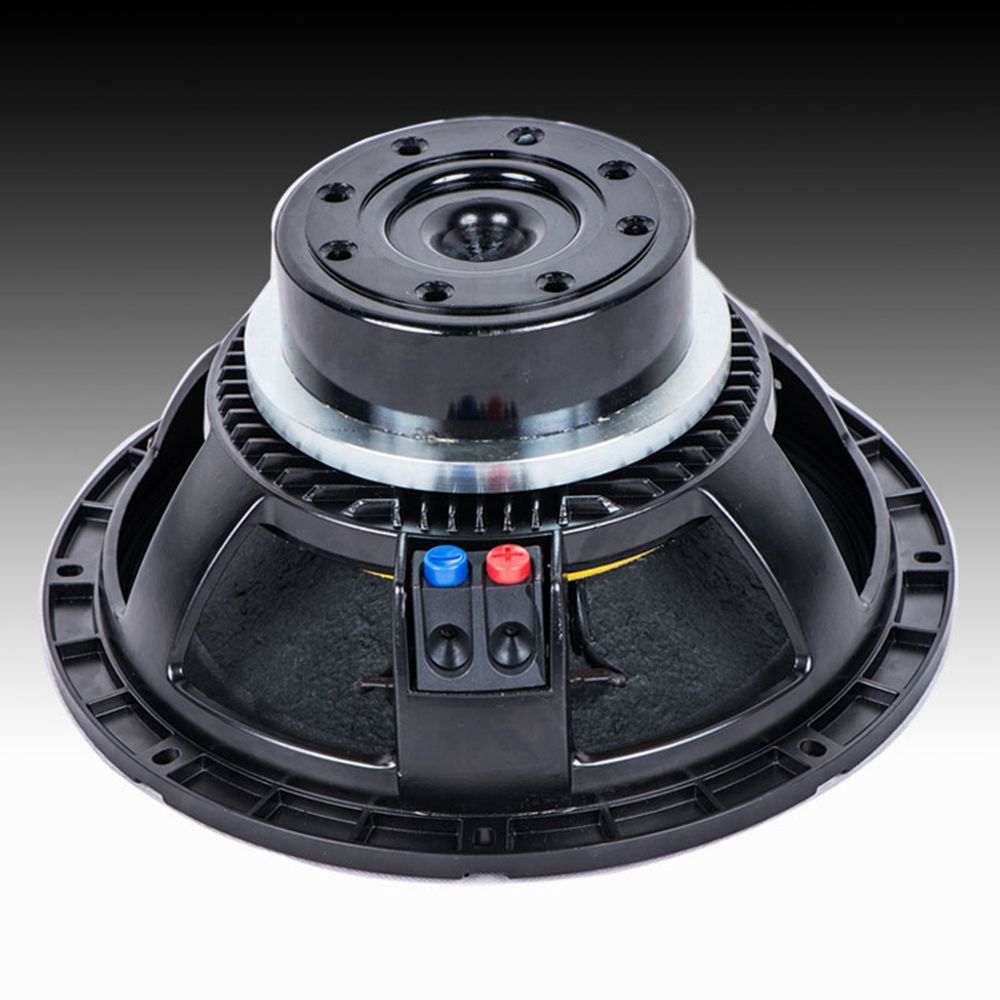

General  Specification LF12N401
Norminal Diameter : 12 inch
Power Rating : 500 W
Norminal Impedance : 8Ohm
Sensitivity : 95dB
Frequency Range : 50HZ-2.5KHZ
Chassis Type: Aluminium
Magnet Type: Neodymium
Magnet Weight : 90x14mm
Voice Coil ; 4"/99.2mm
Coil Material SV,Inside-out.
Former Material : Glass Fiber
Voicecoil Winding Width: 21mm
Cone/Surround Material : Paper/Cloth
Suspension : Double Spider
X-mas: 8mm
N/G  Weight 7/8kg
Dimension WxDxH 37x37x22cm
Thiele & Small Parameters
Re 7.2 ohm
Fs 60HZ
Mms 97.9g
Mmd 100g
Qms 3
Qes 0.34
Qts 0.3
Vas 31.1
BL 28.1
SD 56.4
Features
1000 Watts  Max Power Handling
Neodymium Magnet
Double Spider Suspension
Die Cast Aluminium Chassis
